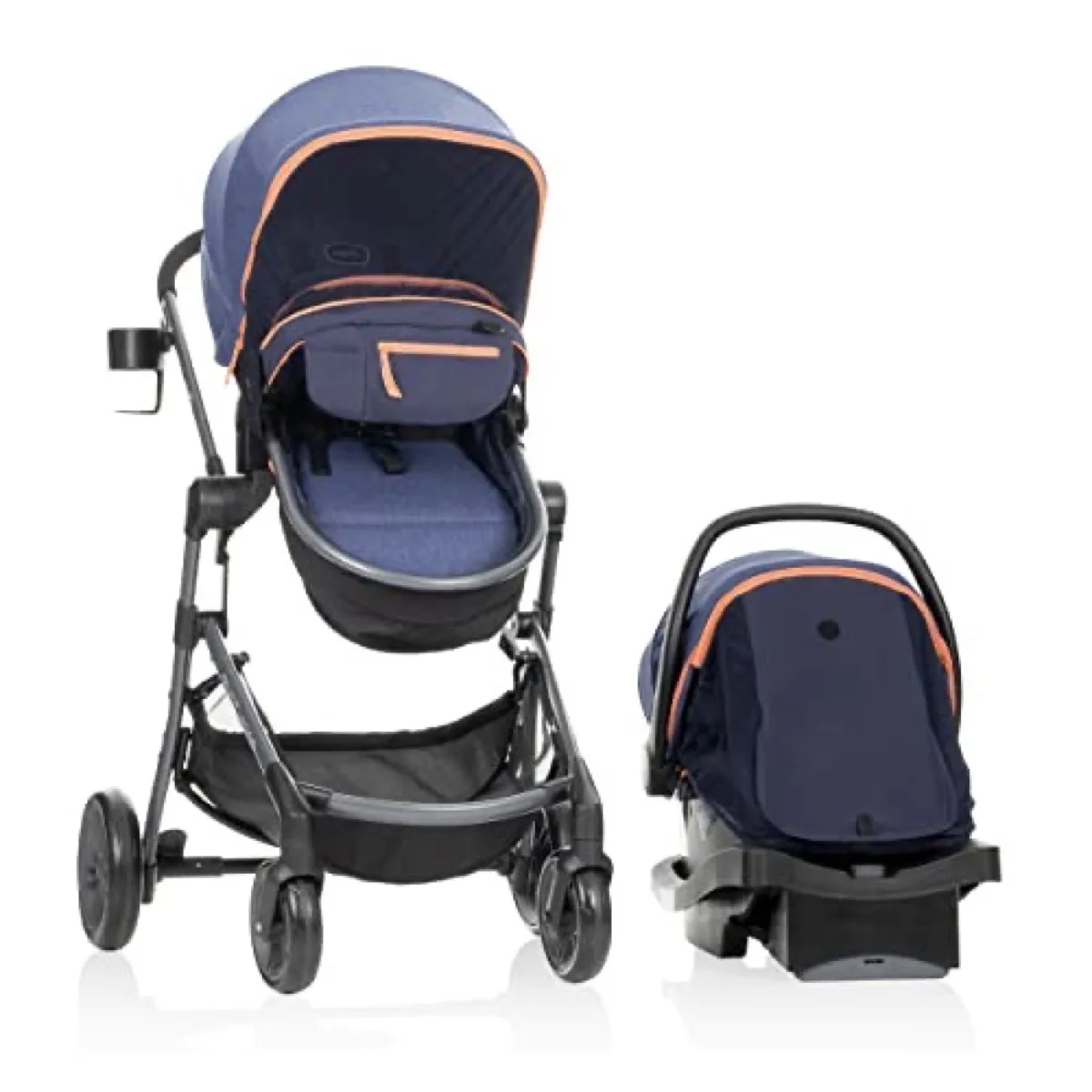

Evenflo Pivot Vizor Travel System with LiteMax infant car seat in Promenade Blue - curated listing main image

Manufacturer manuals-locator card image: Pivot Vizor Travel System with LiteMax Infant Car Seat

Curated listing gallery image of the Pivot Vizor bundle (Promenade Blue configuration)

Evenflo

Pivot Vizor Travel System

Name: Evenflo Pivot Vizor Travel System
Brand: Evenflo

Configuration: Travel-system bundle: Pivot Vizor stroller + Evenflo LiteMax infant car seat + stay-in-car base (Promenade Blue, curated ASIN B09X229YWB)

4.6 User Rating 365 customer ratings

The Evenflo Pivot Vizor Travel System pairs a reversible modular stroller with an Evenflo LiteMax infant car seat and a stay-in-car base. It rides a child to 55 lbs and 40 inches, converts to a carriage mode, and clicks only Evenflo SafeMax or LiteMax seats onto its frame mounts.

Age suitability6 mo
Stroller weightNot published by the manufacturer
Max child height40 in
Warranty90-day limited warranty

Detailed conditions for each figure live in the specifications below.

Our Take

The Pivot Vizor Travel System is built around a reversible seat that lifts off the frame and clicks back on parent-facing or forward-facing, converts to a flat carriage position for a child up to 6 months, and carries the bundled Evenflo LiteMax infant car seat, which clicks straight into the frame mounts with no adapter documented; only Evenflo LiteMax or SafeMax seats are approved for the frame.

Its signature feature is a two-piece mesh privacy shade that zips onto the canopy or infant seat and stores in the bumper bar pouch. It is a privacy screen, not a sun-protection rating - the manual states plainly that the canopy is not intended to provide UV protection, and the mesh carries no UV figure of its own.

Buying one now means buying a retired model: Evenflo has ended production, no official product page remains, the manual is the source of record, and the limited warranty runs just 90 days from purchase. The published rules stay clear - a toddler seat rated to 55 lbs and 40 inches, 1 lb in the cup holder, 10 lbs in the basket - while stroller weight and folded size were never published.

What we like

Reversible modular frame: the toddler seat attaches parent- or forward-facing, converts to a carriage position, and rides the infant car seat in either direction
The LiteMax car seat clicks straight into the frame mounts - the manual names no adapter for the seat route
Two-piece mesh privacy shade that stores in a bumper bar pouch
A 55 lbs and 40 inches rider ceiling for the toddler seat, published in the official manual
Clearly labeled usage limits: the 6-month carriage rule, a 1 lb cup holder cap and a 10 lbs basket cap

Worth knowing

The stroller's own weight and its folded and assembled sizes are not manufacturer-published; this page states those absences rather than quote retail figures
The limited warranty runs just 90 days from the original purchase
The canopy is not intended to provide UV protection, and the wheel construction type is not stated in the manual
The model is retired, with no official product page behind it, and the bundled car seat's own weight range is documented only by the retail listing

Best for

Caregivers who want one bundle - stroller, Evenflo LiteMax infant car seat and base - with a seat that flips to face them or the world and a carriage position for a young infant.

Consider another option if

You need manufacturer-published travel dimensions and weight, a documented UV-protective canopy, warranty coverage beyond 90 days, or a current-production travel system with a live official product page.

Written by googaia from verified manufacturer documentation and published reviews. We do not test products ourselves.

Specifications

Primary figures come from manufacturer sources for the configuration shown. Where a row rests on a secondary source (retailer listing or independent test), the row's source link names it. Missing means not found in the sources checked — we never estimate.

Size & portability

Stroller weight: Not published by the manufacturer
Assembled dimensions: The manufacturer does not publish an assembled size
Folded dimensions: The manufacturer does not publish a folded size
Fold: Pull the levers on both sides and lower the frame until the side frame lock clicks. Constraints stated by the manual: it cannot be folded with the seat rear-facing, cannot be folded in carriage mode, and cannot be folded with the upper privacy cover zipped to the canopy; removing the toddler seat gives a more compact result. Whether the folded stroller self-stands is not stated.

Child fit

Age suitability: Carriage mode is intended for a child up to 6 months of age; the upright seat is only for a child who is capable of sitting upright unassisted. The manual publishes no other age range.
Maximum child weight: 55 lb (24.9 kg)
Maximum child height: 40 inches (101.6 cm)
Newborn configuration: Two documented routes: the carriage mode (stroller seat converts flat, parent- or forward-facing) for a child up to 6 months, and the infant car seat route - Evenflo SafeMax or any version of the LiteMax clicks into the frame seat mounts until both sides click, facing the parent or forward. The bundled LiteMax seat's own limits live in the LiteMax seat manual, not this stroller manual.

Everyday features

Seat direction: Reversible modular frame: the toddler seat attaches parent-facing or forward-facing (press the release buttons on both sides to lift it off), and the car seat rides in either direction on the frame.
Recline: Recline strap with a squeeze button on the rear of the seat; the seat converts from toddler mode to the flat carriage position (straps under the seat unbuckled per the instructions). The manual does not state a numbered position count.
Adjustable calf support: Not found in the manufacturer sources checked
Wheels: Front swivel wheel and front/rear wheel assemblies named in the manual parts list. The wheel construction type is not stated in the manufacturer manual.
Suspension: Not found in the manufacturer sources checked
Basket capacity: 10 lb (4.5 kg) maximum basket load.
Handlebar: Not found in the manufacturer sources checked
Canopy: Oversized canopy with a peek-a-boo window; the manual warns 'The canopy is not intended to provide UV protection'. The two-piece mesh privacy shade zips onto the canopy (toddler or carriage mode) or onto the infant seat.

Additional specifications

Brakes: Rear-wheel lever brake: press the lever DOWN to lock, lift UP to unlock.
Warranty: 90-day limited warranty - for a period of 90 days from the original purchase of this Product, Evenflo warrants to the original end user that this Product (including any accessories) is free from defects in material or workmanship; repair or replacement at Evenflo's option; proof of purchase required
Car Seat Compatibility: Only Evenflo SafeMax or any version of the LiteMax infant car seats; the seat inserts into the frame mounts until both sides click - no adapter is required. Other infant car seats are documented as not designed to fit the stroller frame; some SafeMax/LiteMax blanket and foot-muff options must be removed for attachment.
Harness: Harness with shoulder straps positioned at shoulder height or lower, buckle crotch panel and waist restraint; the bumper bar is removed for harness access.
Storage Weight Limits: Cup holder maximum 1 lb (0.45 kg); main cargo basket maximum 10 lbs (4.5 kg). Basket volume is not published.
Modes Of Use: 6 modes (carriage, car seat or toddler mode, each parent- or forward-facing)
Infant Seat Weight Range: 4-35 lb

Care & Warranty

Cleaning

Clean minor spills and stains on cloth or plastic parts with cold water and mild soap, then air dry; wipe metal and plastic parts with a soft damp cloth. Do not use abrasive cleaners or solvents.

Maintenance

Check the rear lever brake before every use (press DOWN to lock); never fold the frame with the seat rear-facing or in carriage mode;

Full care instructions & warranty terms

Cleaning: Clean minor spills and stains on cloth or plastic parts with cold water and mild soap, then air dry; wipe metal and plastic parts with a soft damp cloth. Do not use abrasive cleaners or solvents. No machine-wash instruction for the seat cover is published.

Maintenance: Check the rear lever brake before every use (press DOWN to lock); never fold the frame with the seat rear-facing or in carriage mode; keep the instruction manual available for reference.

Warranty: 90-day limited warranty - for a period of 90 days from the original purchase of this Product, Evenflo warrants to the original end user that this Product (including any accessories) is free from defects in material or workmanship; repair or replacement at Evenflo's option; proof of purchase required

Ratings & Reviews

GooGaia Rating Not available Overall rating not published

User Rating 4.6/5 365 customer ratings

Reviewer Rating Not available No scored expert review available

Customer ratings

4.6/5 · 365 ratings on Amazon

Professional review findings

No scored expert review available. Award listings and qualitative mentions are kept out of the Reviewer Rating.

Owner feedback

No verified owner feedback available yet for this exact configuration.

All rating sources & methodology

Ratings come from verified customer scores and eligible published review scores; qualitative mentions and duplicated pools are recorded but excluded from scoring. How ratings work →

Compatibility & Extras

What ships with this configuration, what's sold separately, and what fits — verified per seat and accessory for this exact model.

In the box

Pivot Vizor stroller frame with reversible toddler seat (converts to carriage mode)
Two-piece mesh privacy shade (upper + lower privacy cover), stored in the bumper bar pouch
Bumper bar with child tray slot
Flex-hold locking cup holder (driver)
Oversized peek-a-boo canopy
Oversized storage basket
Evenflo LiteMax infant car seat (bundle)
LiteMax stay-in-car base (per the curated listing's description bullet; wording difference with the listing's own box list is recorded in uncertainty.conflicts)
Infant car seat vehicle base (travel-system bundle)

Car Seat Compatibility

Compatible infant car seat brands and adapter requirements.

Works with included adapters

Evenflo

Compatibility varies by car seat model. Always verify your exact car seat, stroller, and required adapter with the manufacturer before purchasing or using them. Infant car seats are sold separately unless otherwise specified.

Verify compatibility with Evenflo

Check before buying

That the stay-in-car base arrives with your unit - the listing's description says it is included while its own contents table names only stroller and seat - and that any future replacement seat is an Evenflo SafeMax or LiteMax; other seats are documented as not designed to fit.
Sources disagree about Base inclusion wording — confirm the current figure with the retailer before buying.

Helpful Questions

Can a newborn ride in the Pivot Vizor?

Two documented routes: the carriage position, intended for a child up to 6 months of age, or the infant car seat route - the bundled Evenflo LiteMax clicks into the frame mounts, as does any SafeMax or LiteMax seat, facing the parent or forward. The upright toddler seat requires a child who sits upright unassisted. The seat's own limits live in the LiteMax seat manual.

Does the bundle include the car seat base?

The curated listing's own description says the bundle includes the Evenflo LiteMax infant car seat as well as a stay-in-car base. The same listing's contents table enumerates only stroller and car seat, so confirm the base when the carton arrives; this page records that wording difference rather than hiding it.

Will another brand of infant car seat click in?

No. The official manual approves only Evenflo SafeMax or any version of the LiteMax and states that other infant car seats are not designed to fit this stroller frame. The seat attaches directly to the frame - no adapter is required.

How much does it weigh and how small does it fold?

Evenflo publishes no stroller weight and no folded or assembled size for the Pivot Vizor, and the captured listing does not state them either; this page labels those rows as unpublished rather than quoting an unverified third-party figure.
